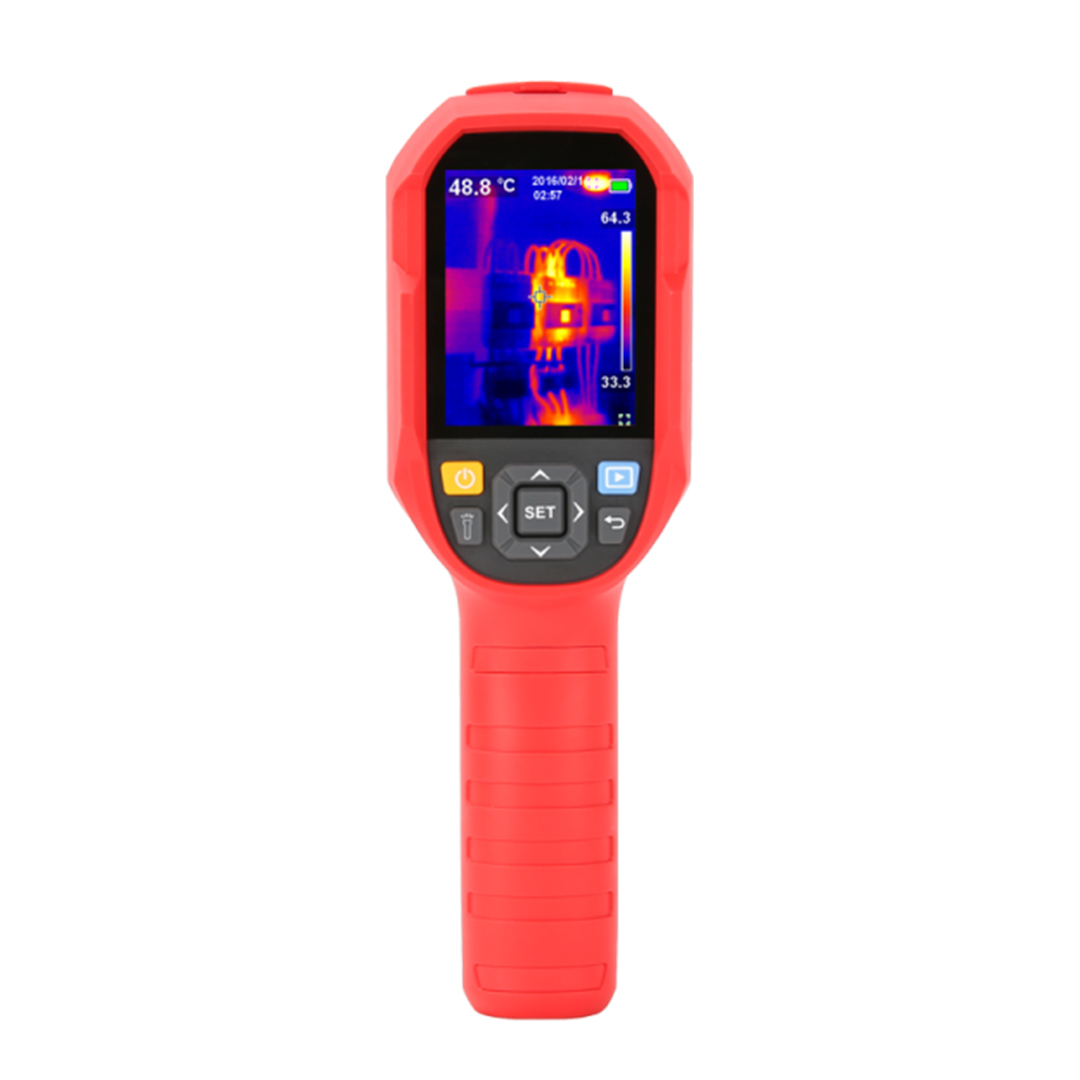

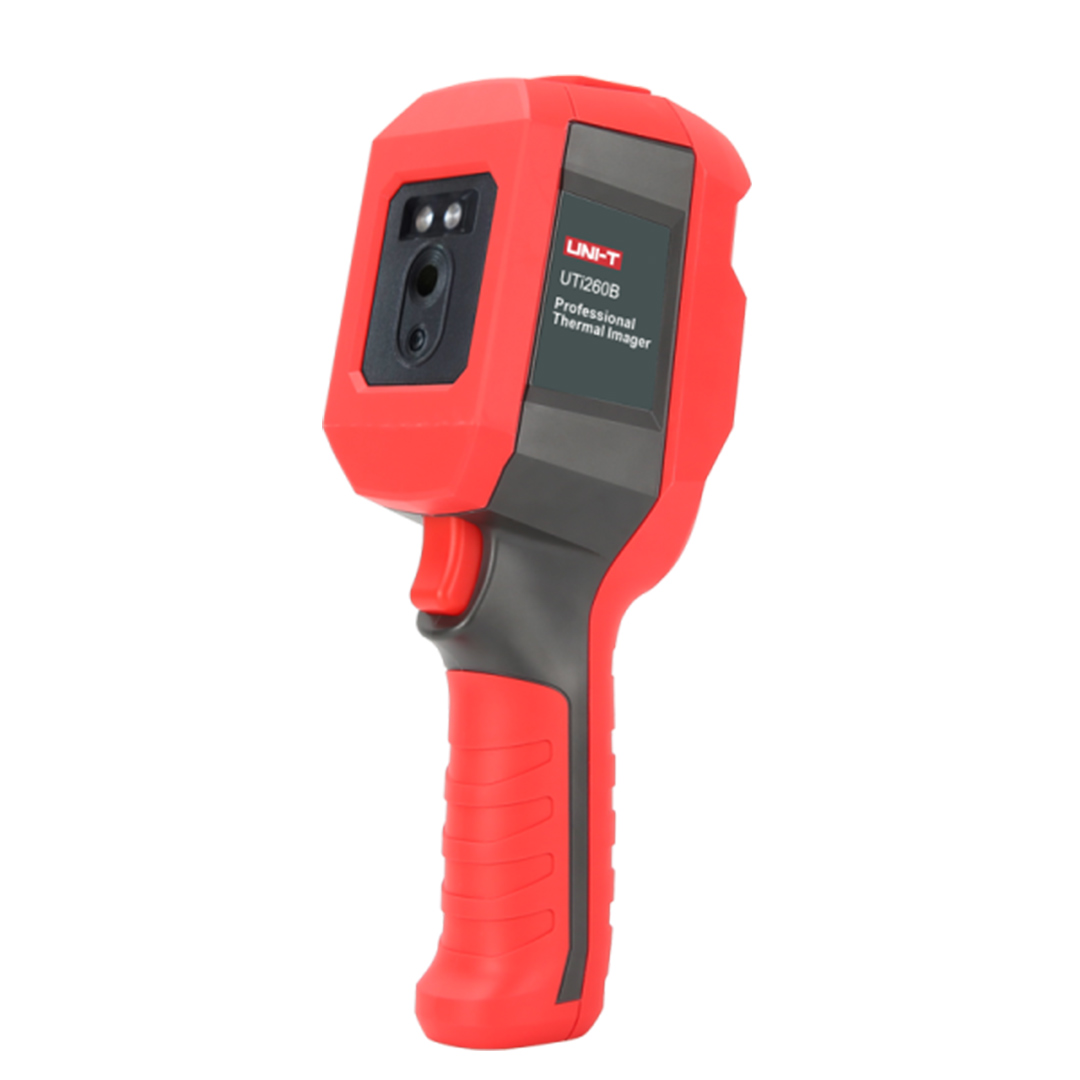

UTi260B Heavy Duty Thermal Camera

43,000৳

Durable and user-friendly
2.8” TFT display screen (320×240 Pixels)
IR resolution: 256×192
Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer: 3 Points
Image capture
Image modess: Thermal,Visual image,Fusion,PIP
Digital camera resolution: 640×480
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
LED flashlight
PC software analysis and real-time image projection)
Rechargeable Li-ion battery
1/4”Tripod Mounting Hole
IP65
2m drop proof

Description
Reviews (0)

Description

IR resolution (Pixels) : 256×192
Display : 2.8” TFT LCD (320×240)
Field of view(FOV): 56°×42°
Thermal sensitivity(NETD) : ≤60mK
Spatial resolution(IFOV) : 3.8mrad
Frame rate : ≤25Hz
Spectral range : 8~14µm
Focus :Focus Free
Temperature measurement range : -20℃~550℃
Accuracy : ±2℃ or ±2% whichever is greater
Emissivity : 0.01~1.00 adjustable (0.95 default)
Functions:
Color palettes : 7(White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
Image Modes : Thermal,Visual image,Fusion,PIP
On Screen Analyzer : 3 Points
Digital camera resolution : 640×480
Hi/Lo temperature alarm : Icon,LED flashlight
PC software analysis : √
General Characteristics
Battery : Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time : ≥ 6 hours
USB : Type-C
IP rating : IP65
Drop proof : 2m
Storage : Up to 32GB Micro SD card
Image/Video storage format : BMP
Certificates : CE,FCC,RoHS
Product net weight : 490g
Product size : 236mm×75.5mm×86mm
