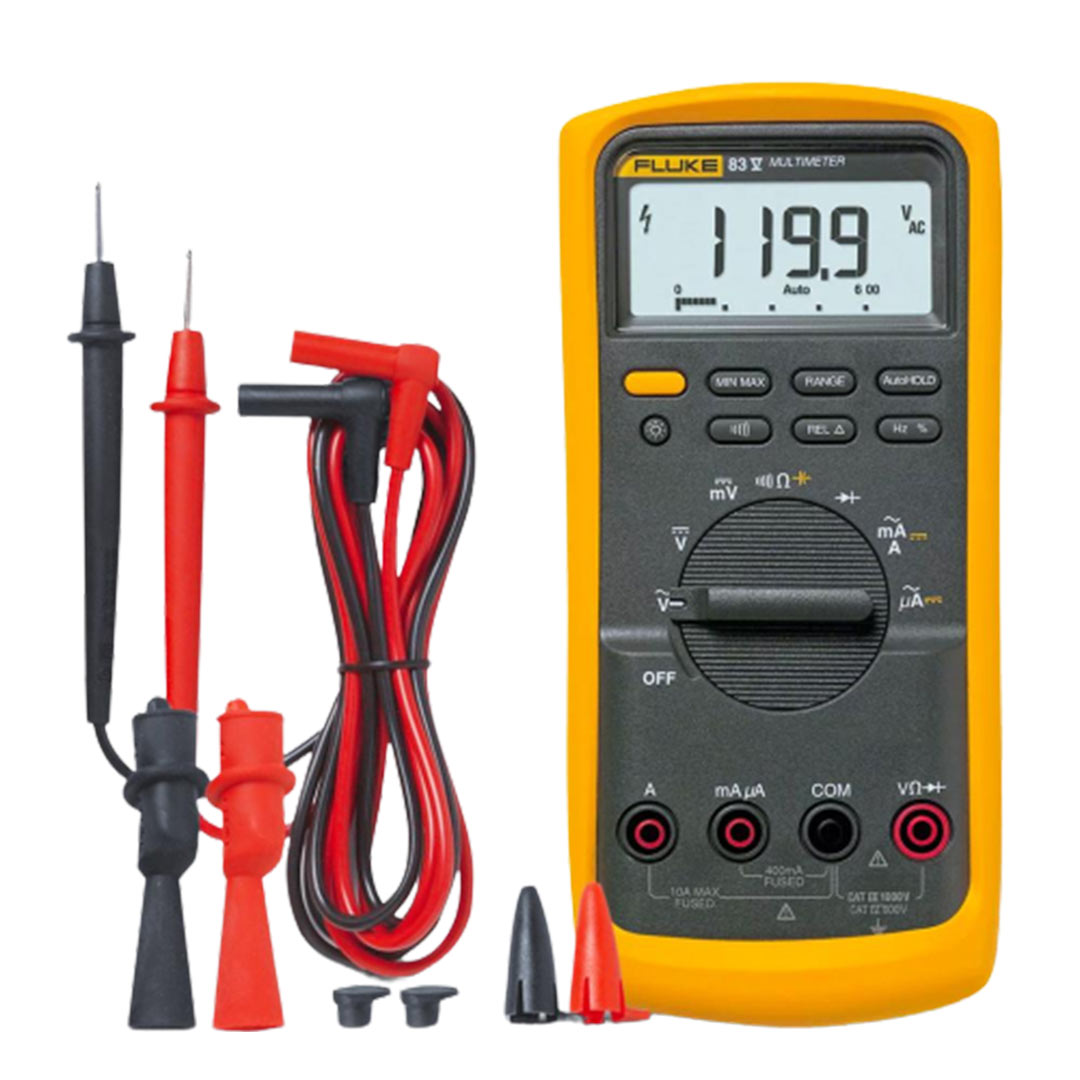

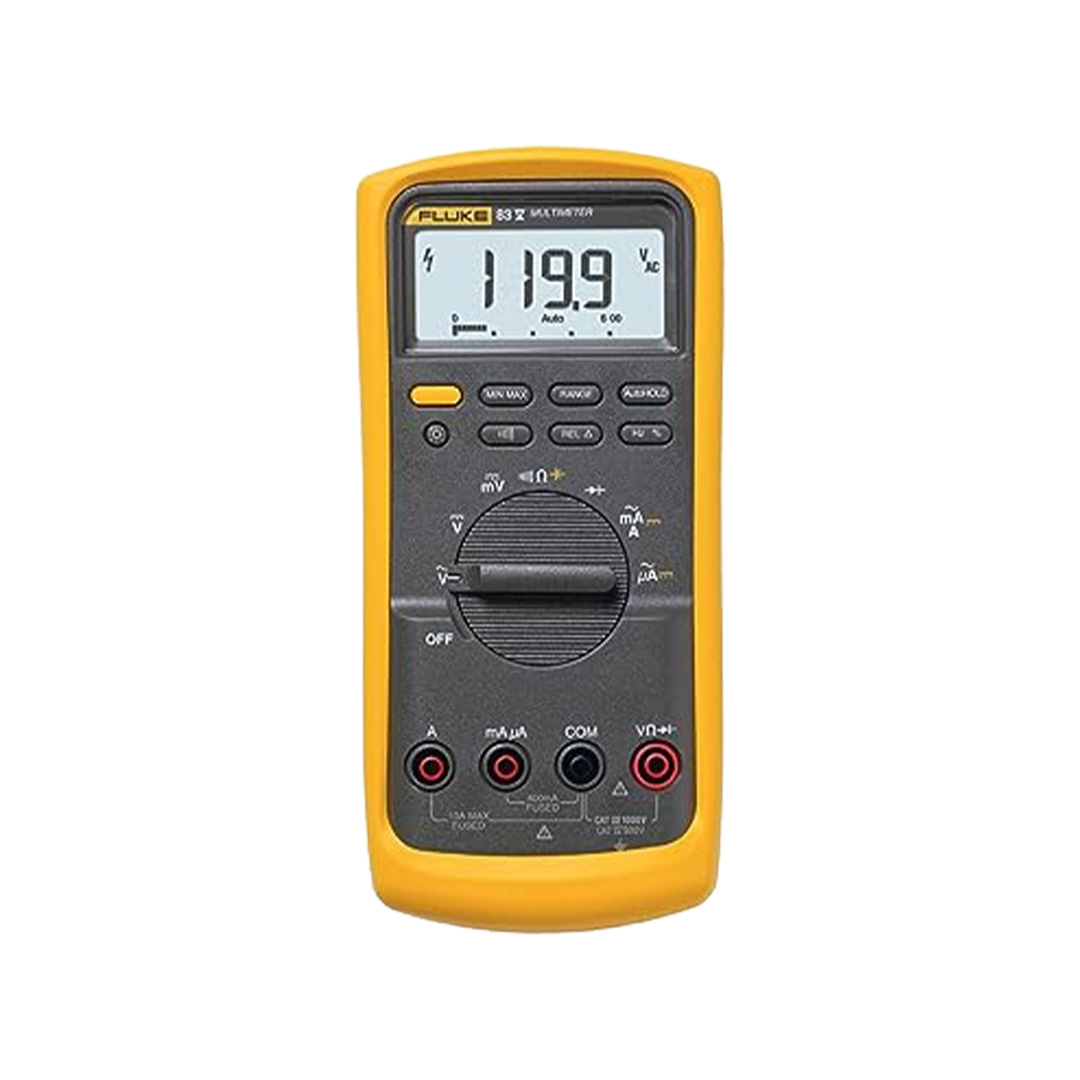

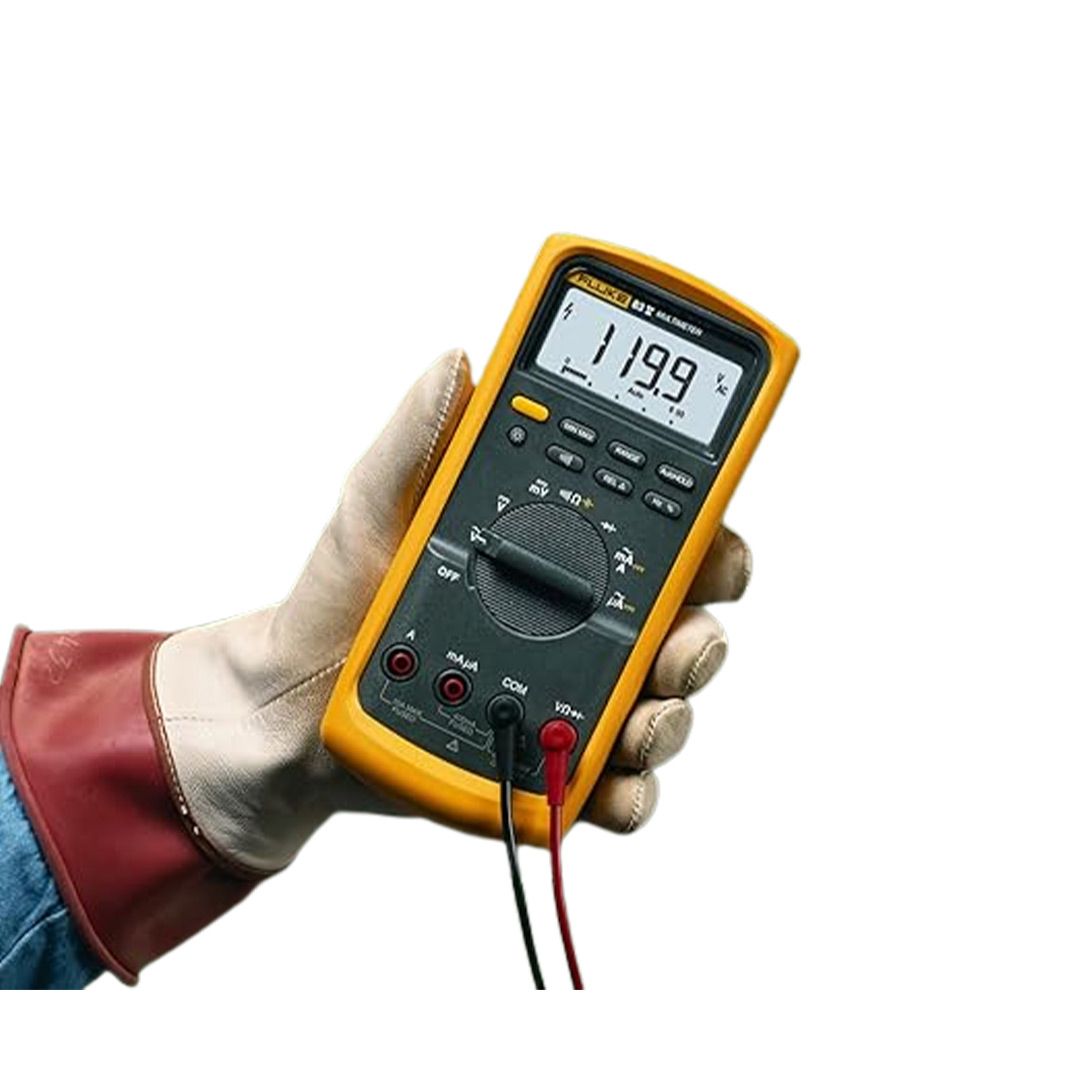

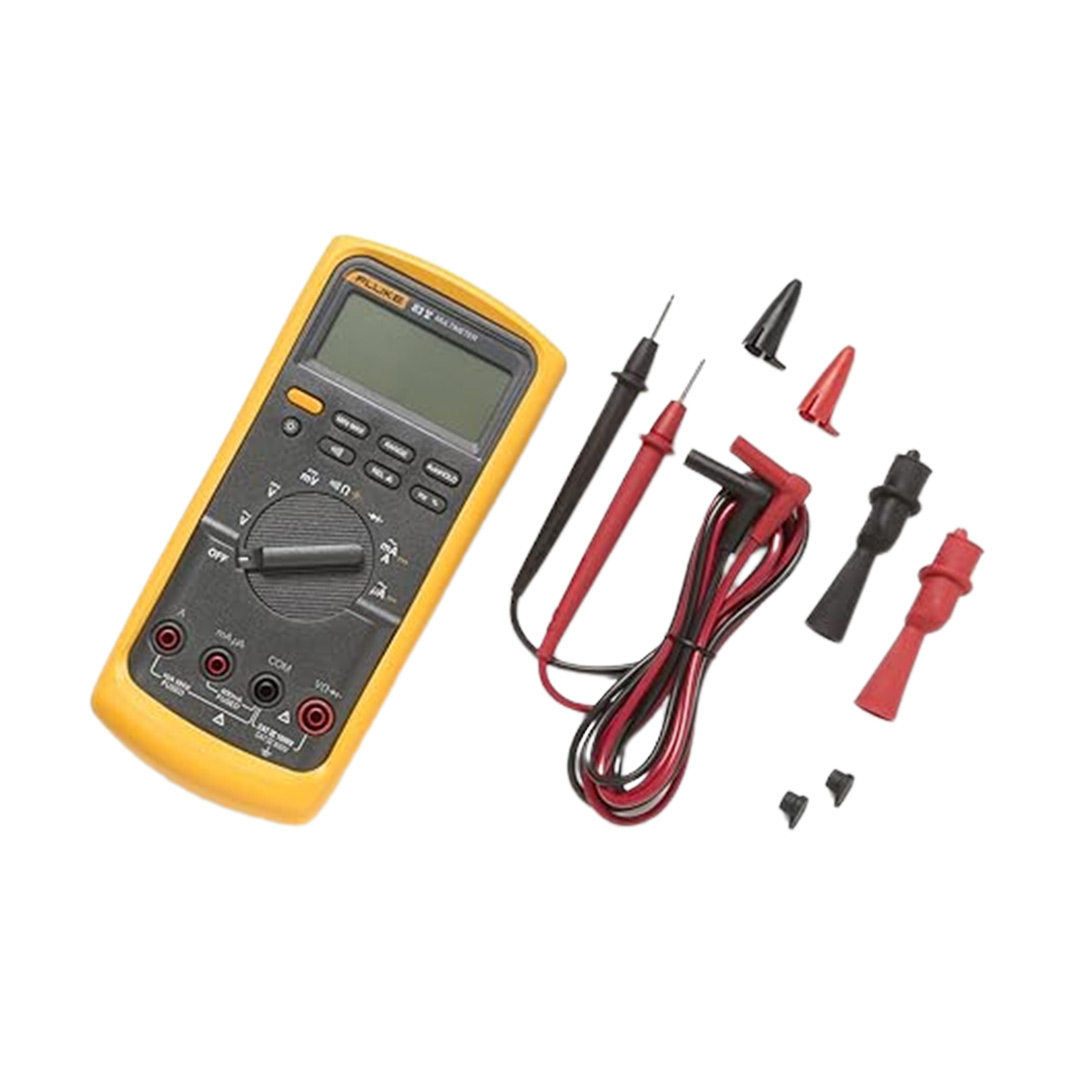

Fluke 83V Average Responding Industrial Multimeter

Specifications Voltage DC Maximum voltage 1000 V Accuracy ±(0.1% + 1) Maximum resolution 100 µV Voltage AC Maximum voltage 1000 V Accuracy ±(0.5% + 2) Maximum resolution 0.1 mV Current DC Maximum amps 10 A (20 A for 30 seconds maximum) Amps accuracy ±(0.4% + 2) Maximum resolution 0.01 mA Current AC Maximum amps 10 A (20 A for 30 seconds maximum) Amps accuracy ±(1.2% + 2) Maximum resolution 0.1 µA Resistance Maximum resistance 50 MΩ Accuracy ±(0.4% + 1) Maximum resolution 0.1 Ω Capacitance Maximum capacitance 9,999 µF Accuracy ±(1% + 2) Maximum resolution 0.01 nF Frequency Maximum frequency 200 kHz Accuracy ±(0.005% + 1) Maximum resolution 0.01 Hz Duty cycle Maximum duty cycle 99.9% Accuracy ±(0.2% per khz + 0.1%) Maximum resolution 0.1% Conductance Maximum conductance 60.00 nS Accuracy ±(1.0% + 10) Maximum resolution 0.01 nS Diode Range 3 V Resolution 1 mV Accuracy ±(2% + 1) Duty cycle range Accuracy within ±(0.2% per kHz + 0.1%) Environmental Specifications Operating temperature –20°C to +55°C Storage temperature –40°C to +60°C Humidity (without condensation) 0% – 90% (0°C – 35°C) 0% – 70% (35°C – 55°C) Operating altitude 2000 m Safety Specifications Overvoltage category EN 61010–1 to 1000 V CAT III, 600V CAT IV Agency approvals CSA, TÜV Mechanical and General Specifications Display Digital 6000 counts updates 4/sec Analog 32 segments, updates 40/sec Frequency 19,999 counts, updates 3/sec at > 10 Hz Size 201 x 98 x 52 mm (with holster) Weight 355 g Weigh with holster and flex–stand 624 g Warranty Lifetime Battery life Alkaline~400 hours typical, without backlight Shock 1 Meter drop per IEC 61010–1:2001 Vibration Per MIL–PRF–28800 for a Class 2 instrument
