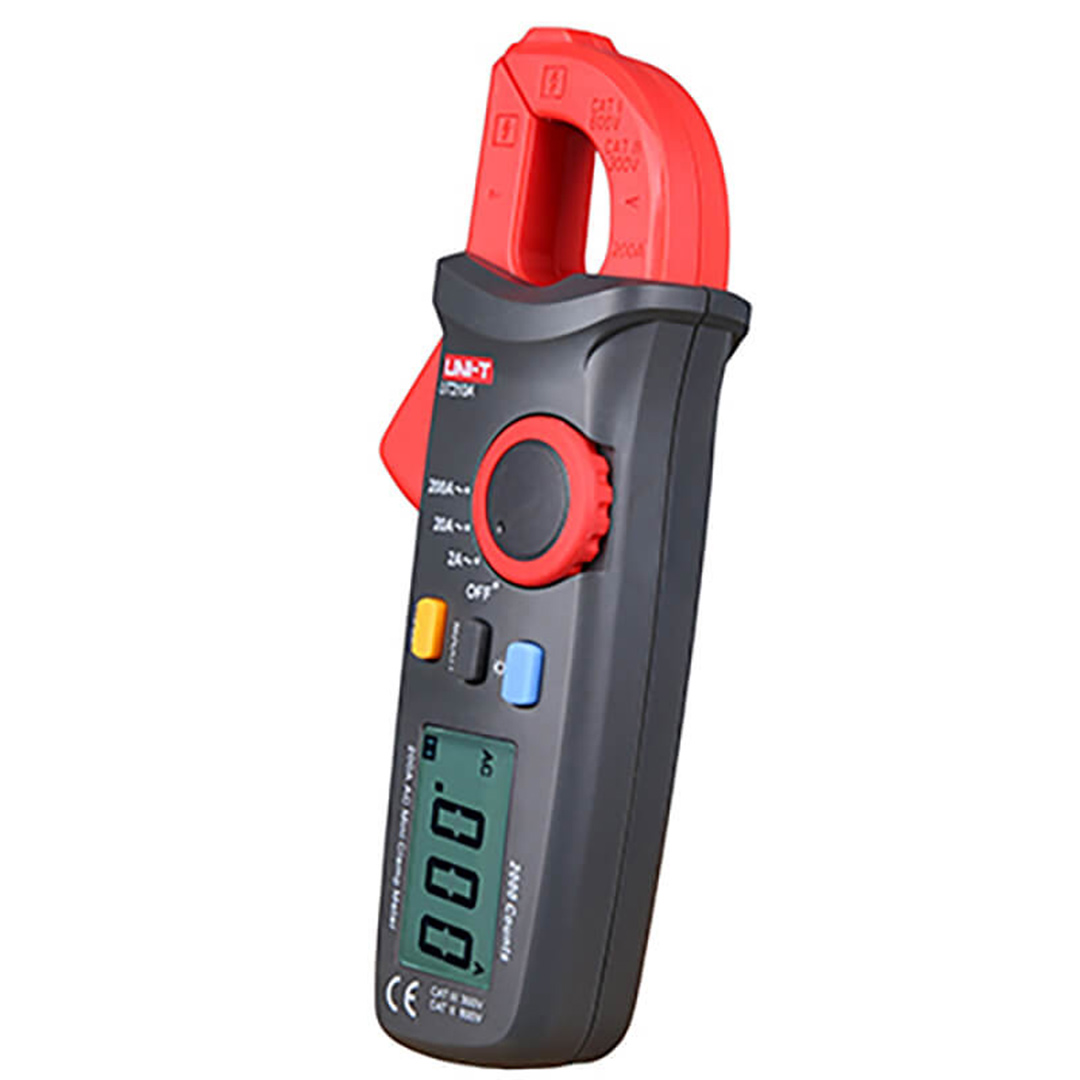

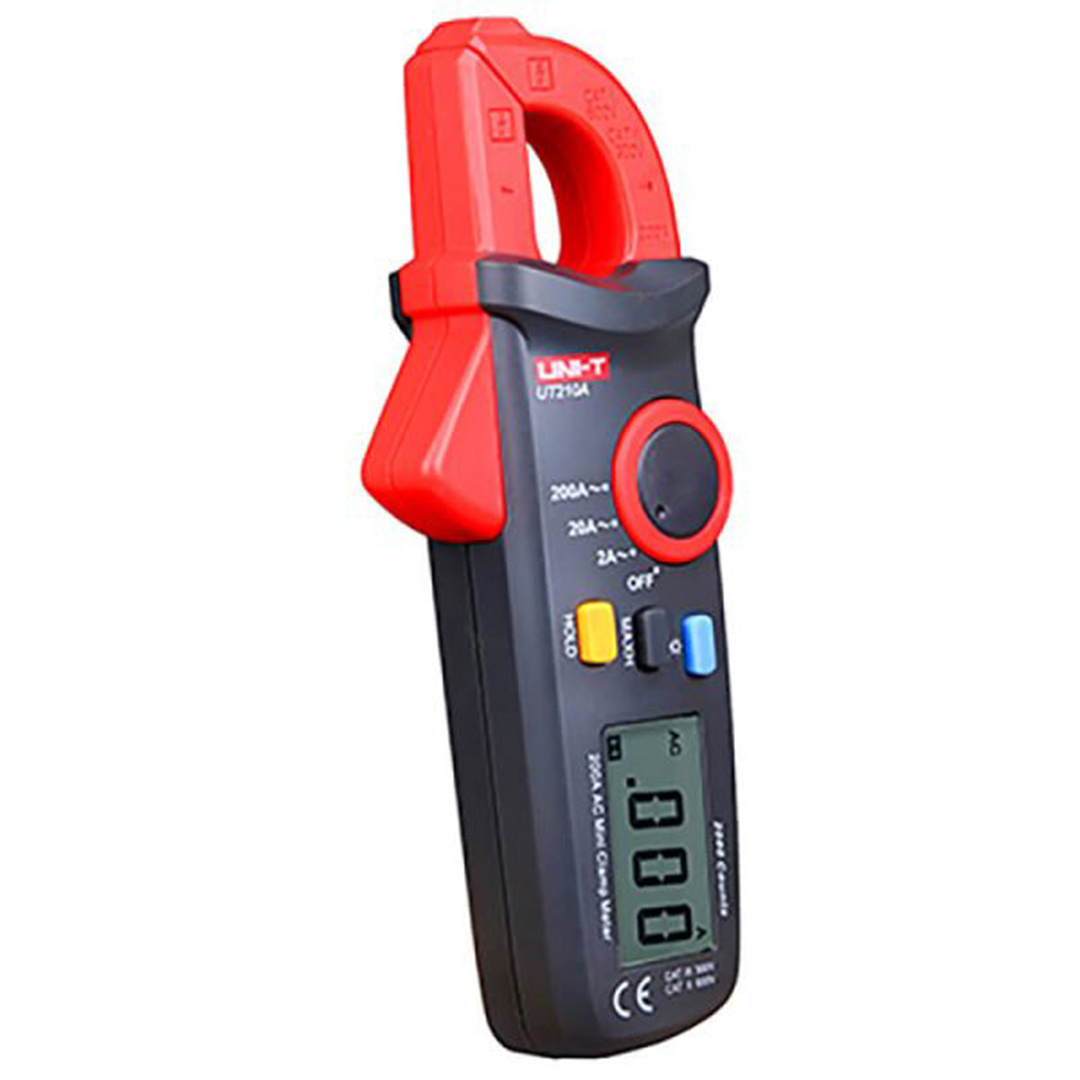

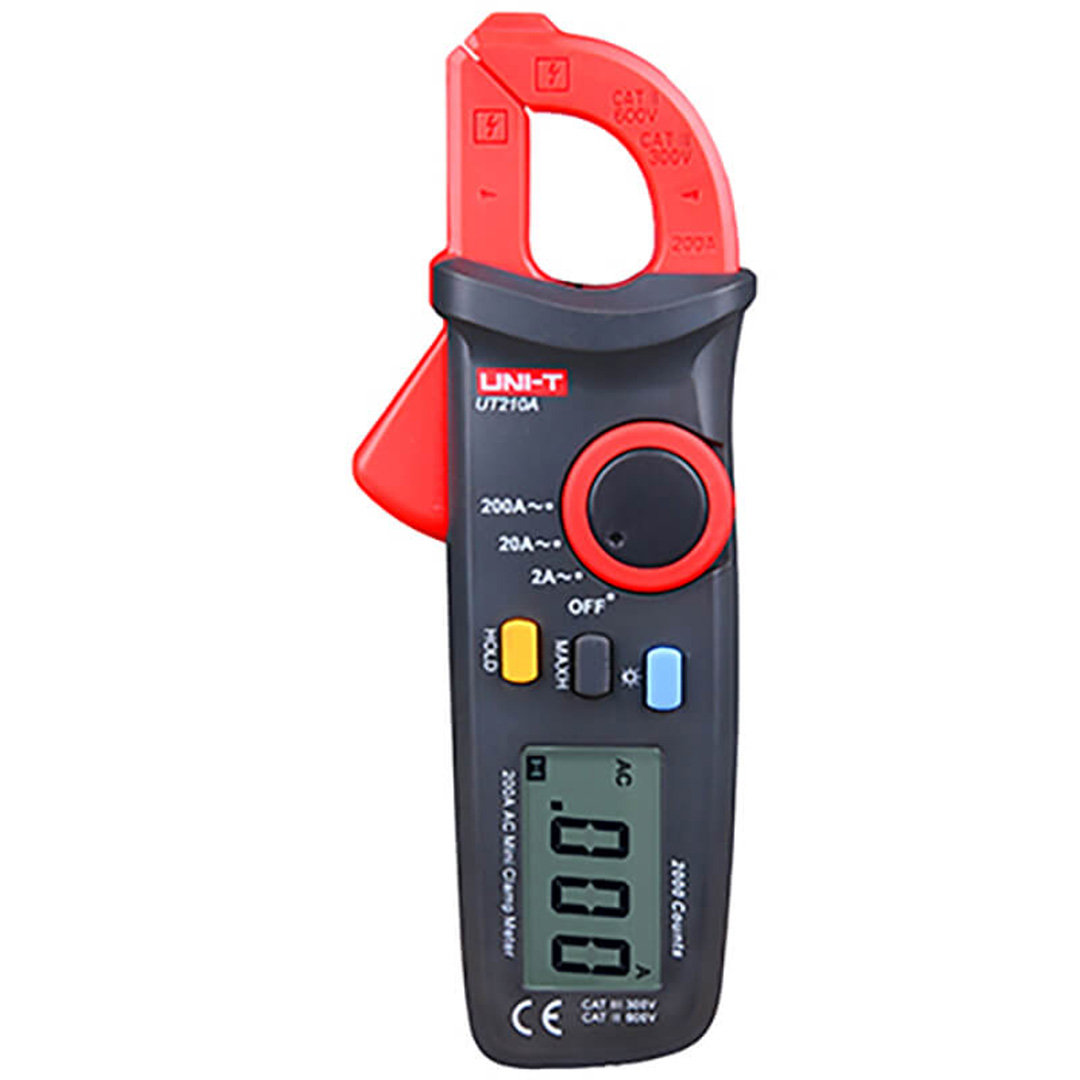

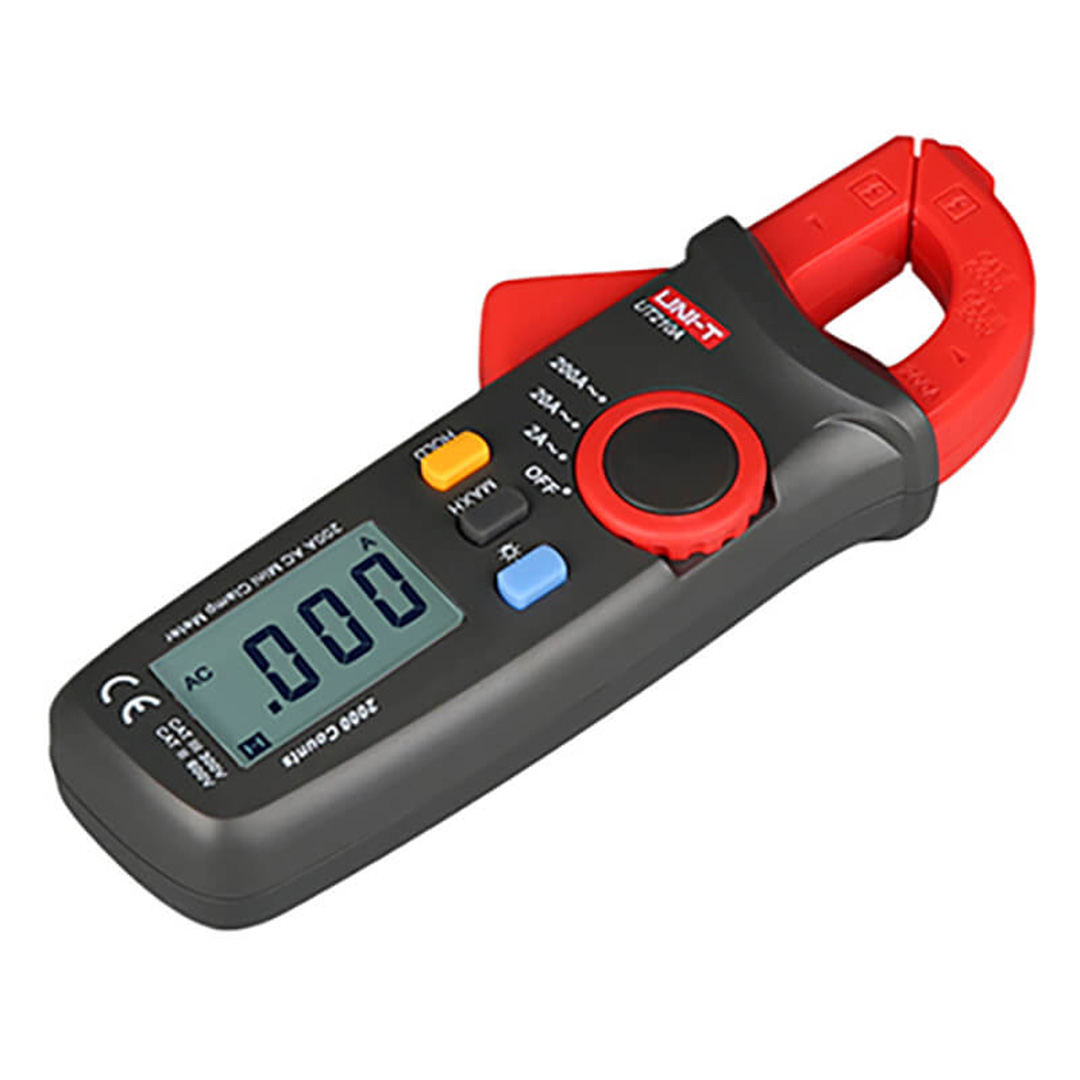

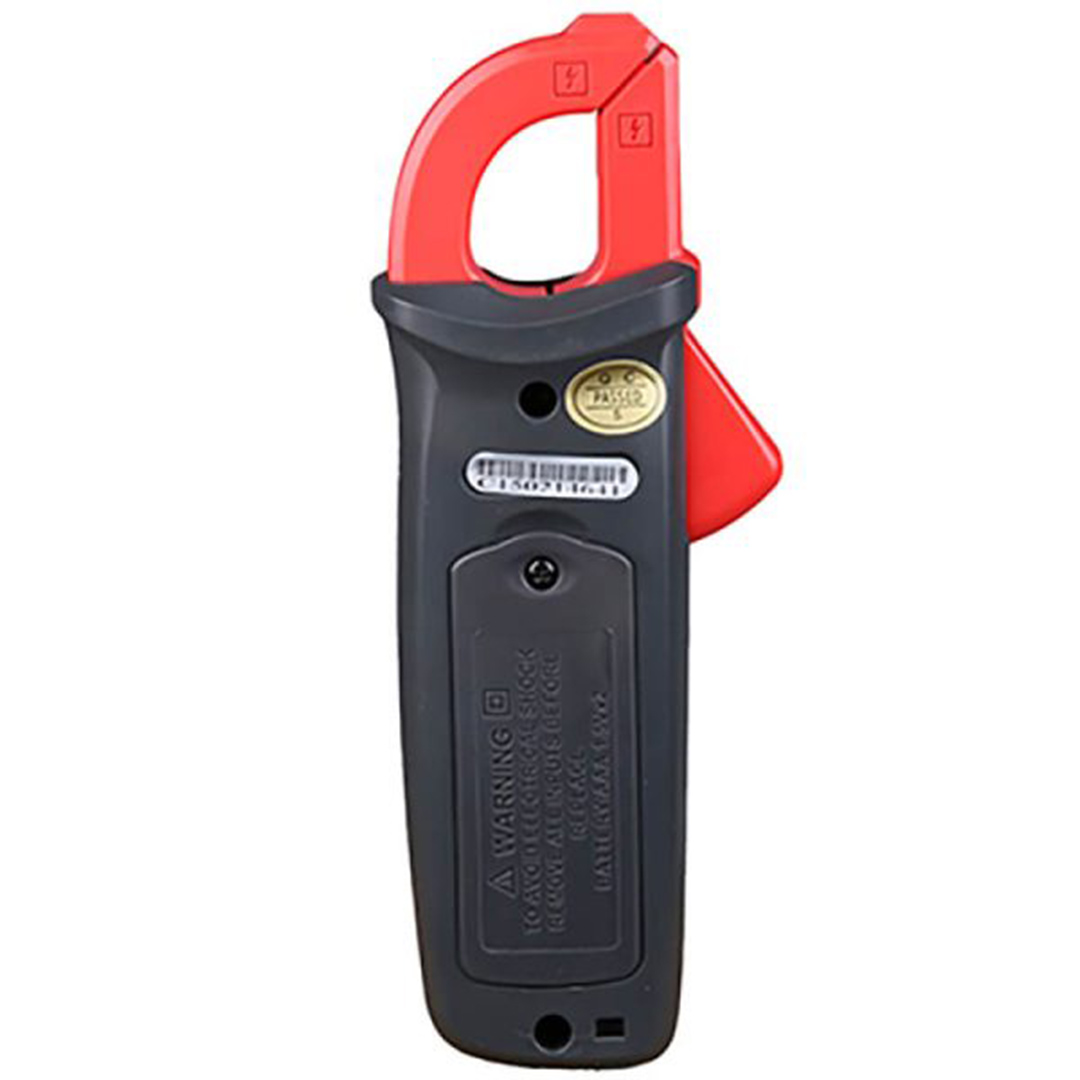

UT210A Mini Clamp Meter

Specifications Range UT210A UT210B UT210C UT210D UT210E AC current (A) 200A ±(2.5%+20) ±(2.5%+20) ±(2%+10) ±(2.5%+8) 100A ±(2.5%+5) DC current (A) 200A ±(2%+3) 100A ±(2%+3) AC voltage (V) 600V ±(1%+3) ±(1%+3) ±(1%+3) DC voltage (V) 600V ±(0.7%+3) ±(0.7%+3) ±(0.7%+3) Resistance (Ω) 20MΩ ±(1%+2) ±(1%+2) ±(1%+2) Frequency (Hz) 60kHz ±(0.1%+4) Capacitance (F) 20mF ±(4%+5) ±(4%+5) ±(4%+5) Temperature -40~1000℃ ±(1%+3) ±(1%+3) -40~1832℉ ±(1.5%+5) ±(1.5%+5) Features Display count 2000 2000 2000 2000 2000 Continuity buzzer √ √ √ √ √ Auto range √ √ √ Jaw opening 16mm 16mm 17mm 17mm 17mm Diode test Around 3.0V √ √ √ General Characteristics Power 1.5V battery (R03) x 2 Display 39.3mm x 26.5mm Product color Red and grey Product net weight UT210A/B: 150g (batteries included); UT210C/D/E: 170g Product size UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm Standard accessories Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D) Standard individual packing Gift box, English manual, carrying bag (UT210C/UT210D/UT210E) Standard quantity per carton 40pcs Standard carton measurement UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm Standard carton gross weight UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg Category: Digital Clamp Meters Tag: UT210A
